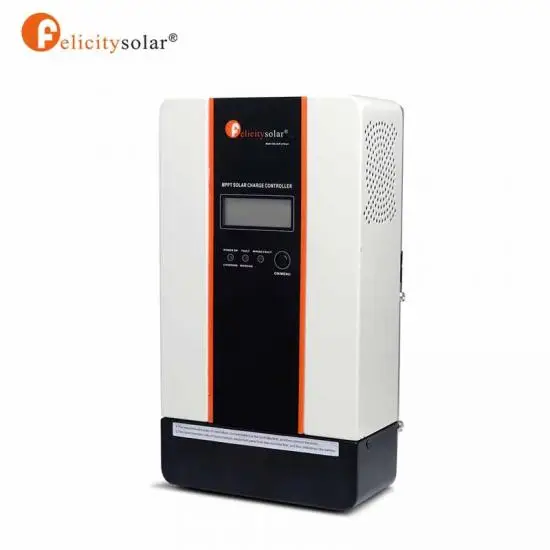

Felicity Solar SCCM 4548
Original price was: KSh 26,000.00.KSh 24,000.00Current price is: KSh 24,000.00.
Felicity Solar SCCM 4548
Technical Specifications
| Feature | Specification |
| Model | SCCM-4548 |
| Rated Charge Current | 45A |
| Nominal System Voltage | 12V / 24V / 48V DC (Auto Detection) |
| Max. PV Input Voltage (VOC) | 145V |
| Max. PV Input Power | 12V: 625W | 24V: 1250W | 48V: 2500W |
| MPPT Voltage Range | 15V–130V (12V) / 30V–130V (24V) / 60V–130V (48V) |
| Efficiency | Max 98% |
| IP Rating | IP31 (Indoor & Vented) |
| Weight | Approx. 4.0 kg – 4.7 kg |
Description
Felicity Solar SCCM 4548
This high-performance Felicity Solar SCCM-4548 is an advanced Maximum Power Point Tracking (MPPT) charge controller designed to maximize energy harvest from your solar panels. It is a versatile choice for off-grid residential, commercial, and telecommunication systems.
Key Features
-
High Efficiency: Advanced MPPT technology increases charging efficiency by 25%–30% compared to PWM controllers, reaching a peak conversion efficiency of 98%.
-
Smart Multi-Voltage Detection: Automatically recognizes and adjusts to 12V, 24V, or 48V battery systems (Lithium systems require manual setup).
-
Optimized 3-Stage Charging: Uses a Bulk, Absorption, and Float algorithm to extend battery lifespan and ensure a full charge.
-
Lithium Support: Features a dedicated Lithium battery wake-up function, making it compatible with modern LiFePO4 packs as well as AGM, Gel, and Flooded lead-acid batteries.
-
Comprehensive Protection: Built-in safeguards against overcharging, over-discharging, PV reverse polarity, and over-temperature.
-
Intelligent Monitoring: Equipped with a multi-functional LCD display and communication ports (RS485/MODBUS) for real-time tracking of PV and battery status.
